1. Quick Details of lip seal 175-15-05064 :
| Part NO. | 175-15-05064 |
| Machine | D155A-1 D155A-2 |
| Size | OEM |
| Material | RUBBER,SILICON,FIBERGLASS |
| Oil seal type | SERVICE KIT,TRANSMISSION |
2. 175-15-05064 parts on group :
| PART NO. | PART NAME | QTY |
| 07000-02008 | O-RING | 1 |
| 07000-73022 | O-RING | 1 |
| 07000-03022 | O-RING | 1 |
| 07000-05055 | O-RING | 1 |
| 07000-05290 | O-RING | 1 |
| 175-15-42430 | O-RING | 1 |
| 07012-10110 | SEAL | 1 |
| 07012-00100 | SEAL | 1 |
| 07012-10100 | SEAL | 1 |
| 175-15-41122 | GASKET | 1 |
| 175-15-41121 | GASKET | 1 |
| 175-15-41120 | GASKET | 1 |
| 07000-05470 | O-RING | 1 |

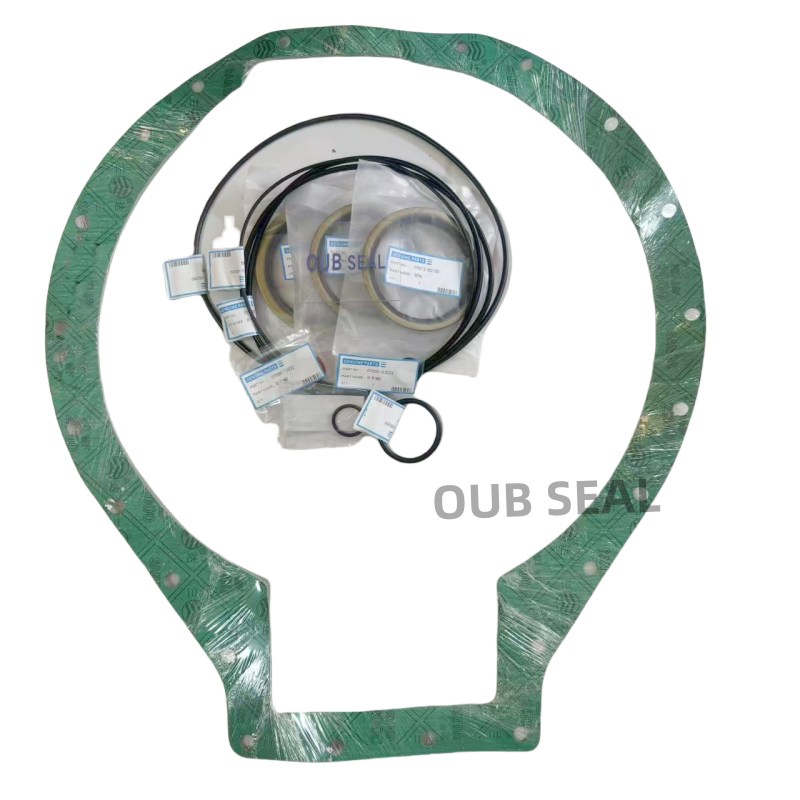

3. 175-15-05064 picture:
4. Service kit part no. :
| PART NO. | PART NO. | Part NO. |
| 195-15-05671 | 195-15-05713 | 195-15-05420 |
| 195-15-05900 | 195-15-05671 | 195-15-05410 |
| 195-15-05930 | 195-15-05670 | 195-15-05400 |
| 195-15-05710 | 195-15-05640 | 195-15-05221 |
| 195-15-05711 | 195-15-05630 | 195-15-05810 |
| 195-15-05712 | 195-15-05620 | 195-15-05811 |
5. FAQ
Q: What material is the gasket made of?
A: While there's a variety of materials used in gasket and seal kits, the "paper-like" gaskets are typically one of these types:
- Reinforced Cellulose with Nitrile Binder: This is a common material that looks like paper. It offers excellent resistance to oil and other fluids, and is good for sealing at high temperatures and pressures.
- Compressed Non-Asbestos Fiber: This material is a blend of non-asbestos fibers (like fiberglass or aramid fibers) combined with a rubber binder, such as nitrile rubber. It's a high-performance material that provides good temperature and pressure resistance.
- Cork-Rubber Blend: This material combines cork's flexibility and sealing properties with the durability and chemical resistance of synthetic rubber. It is also a very common material for automotive gaskets.
Q: I want to know the functions of transmission kit,do you know that ?
A: Yes, the kit 175-15-05064 main functions include:
- Seal & Gasket Replacement – Prevents fluid leaks by replacing worn-out seals, O-rings, and gaskets
- Bearing & Bushings Renewal – Reduces friction and wear in moving parts.
- Clutch & Synchronizer Repair – Ensures smooth gear shifting by replacing damaged clutch plates or synchronizer rings.
- Preventing Further Damage – Extends transmission lifespan by addressing early signs of wear
Q: I see many white color rings in your picture , so what material is this ?
A: The material is Fiberglass or Glass Fiber,I'd love to show you the of fiberglass :
- High Strength-to-Weight Ratio: Stronger than many metals (per weight) but lightweight
- Tensile Strength: Comparable to steel, but more flexible.
- Stiffness: Moderate rigidity (can be adjusted with resin/fiber ratios).
Impact Resistance: Absorbs energy without permanent deformation.
Q: What is the difference of silicon o-ring and rubber o-ring?
- Temperature Resistance
- Silicone O-rings:Excellent high-temperature resistance (-60°C to 230°C / -76°F to 446°F).Performs well in extreme heat but can degrade at very high temps (>250°C) without proper reinforcement.
- Rubber O-rings:Nitrile (NBR): -40°C to 120°C (-40°F to 248°F).
- EPDM: -50°C to 150°C (-58°F to 302°F).
- FKM (Viton): -20°C to 200°C (-4°F to 392°F).
Winner: Silicone for extreme high & low temps.
2. Chemical Resistance
- Silicone O-rings:Good resistance to water, ozone, and UV light.Poor resistance to fuels, oils, acids, and solvents.
- Rubber O-rings:Nitrile (NBR): Excellent resistance to oils & fuels.
- EPDM: Resistant to water, steam, and mild chemicals.
- FKM (Viton): Excellent resistance to fuels, oils, acids, and harsh chemicals.
Winner: Rubber (NBR/FKM) for oil & chemical resistance.
6.Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
|
|
175-15-05064 1751505064 FITS FOR KOMATSU D155A-1 D155A-2; TRANSMISSION KIT;SERVICE KIT Images
|
