445-12307 Plate Friction Clutch 445/12307 - JCB

Product Categories
Guangzhou Opal Machinery Parts Operation Department
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

445-12307 Plate Friction Clutch 445/12307 - JCB

  • 1
  • 2
  • 3

Brand Name : OUB

Model Number : 445-03205 44503205

Place of Origin : China

MOQ : 10 Pcs/Accept trial order

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000SET

Delivery Time : Within 5-15 days after getting your desposit

Packaging Details : PP Bag Inside.outer is carton with film wrapped.

OEM NO. : 445-12307 44512307

Model : JCB

NAME : Friction Disc

Machine : JCB

Size : OEM Standard

Material : HQC,HQP,HQE

Friction guide value : Dynamic >0.5

Max.surface pressure : According to material properties

Color : Silver Gold

Package : 1pcs as a seperate

Contact Now


1. Product Details

Part NO. 445-12307 44512307
Machine JCB
Model JCB
Size OEM Standard
Material HQC,HQP,HQE
Color Silver Gold BLACK

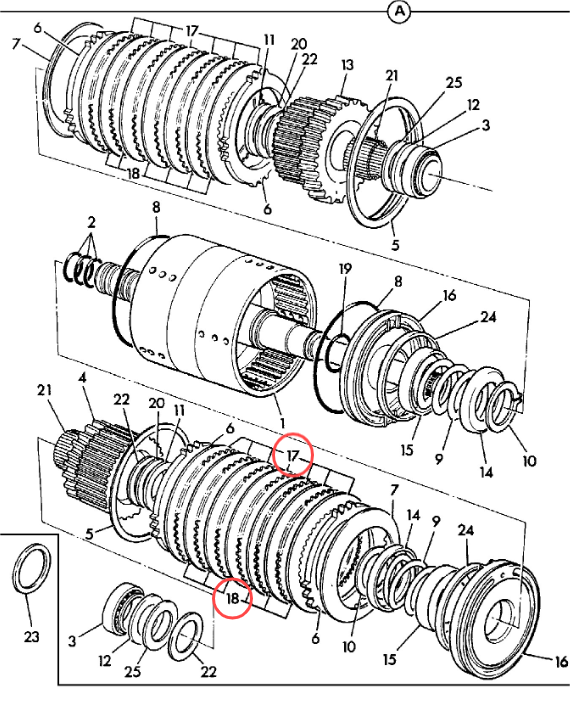

2. 445-12307 ON GROUP:
445-12307 Plate Friction Clutch 445/12307 - JCB

Pos. Part No Qty Parts name
1 445/12400 [1] Housing clutch reverser
2 904/50020 [4] Seal Ring 35mm Dia
3 907/52700 [2] Bearing -Taper Roller
4 445/12600 [1] Housing plate carrier 22T & 45T
5 2203/1115 [2] Circlip
6 445/12315 [4] Plate pressure
7 445/18600 [2] Disc spring
8 828/00154 [2] O Ring
9 814/00297 [2] Spring Compression
10 821/00265 [2] Circlip
11 445/12303 [2] Washer Thrust
12 445/03209 [2] Washer Thrust
13 445/12500 [1] Housing plate carrier 31T & 45T
14 445/12304 [2] Retainer spring
15 'See Remark'
16 445/12316 [1] Piston reverser c/w oil baffle
17 445/03205 [12] Plate Friction
18 445/12307 [10] Plate Counter
19 828/00224 [2] O Ring
21 917/02700 [2] Bearing Needle Roller
22 445/73501 [2] Washer thrust
23 445/12314 [0] Shim plate, Toothed
24 445/12313 [2] Liner piston
25 917/02800 [2] Bearing Thrust
27 921/51700 [1] Kit-shim

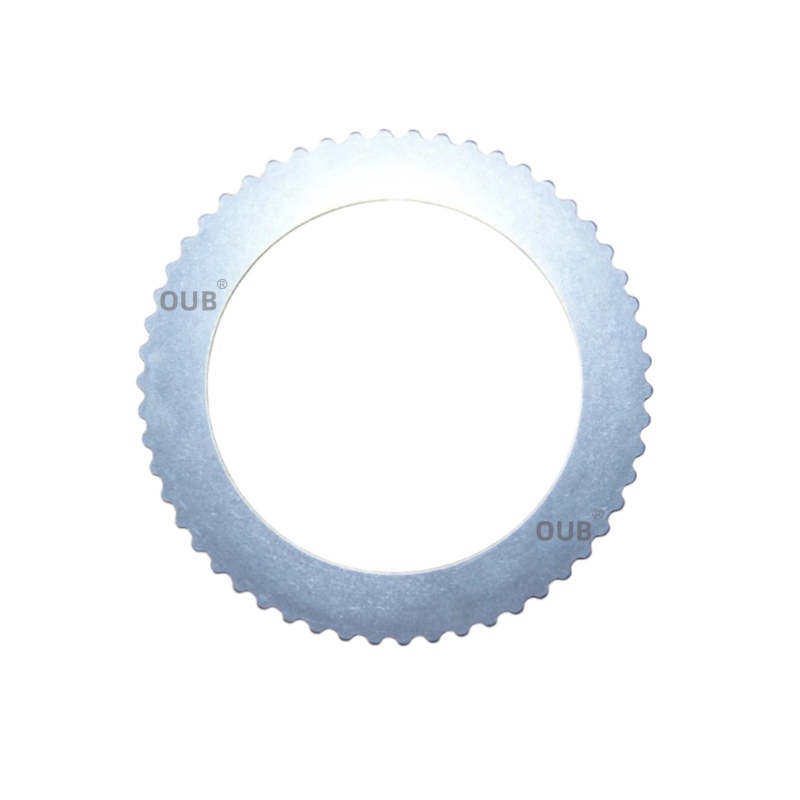

3. Picture details of 445-12307:
445-12307 Plate Friction Clutch 445/12307 - JCB
4. PART NO. ON THE GROUP

331-16516 451-01702
331-16520 451-22702
445-03205 458-20285
445-12307 458-20286
450-10211 458-20289
450-10212 458-20353

5. Our advantages
445-12307 Plate Friction Clutch 445/12307 - JCB

  • We are a factory and we also have our own sales team.
  • We have original software system data to support which 100% accurate.
  • We know how to protect your equipment with high-quality products and professional knowledge.


6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.

Q2. How do you answer my questions?
A2. We have professional sales and technical staff to reply you online. At the same time, you can also send us a message via email or WhatsApp

Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable time.

Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.

Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.

7. Exhibition & Warehous

445-12307 Plate Friction Clutch 445/12307 - JCB

445-12307 Plate Friction Clutch 445/12307 - JCB


Machine NO. ,Model No. Part No. , And More
