281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

Product Categories
Guangzhou Opal Machinery Parts Operation Department
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

  • 1
  • 2
  • 3

Brand Name : OUB

Model Number : 281-15-12720 2811512720

Place of Origin : China

MOQ : 10 Pcs/Accept trial order

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000SET

Delivery Time : Within 5-15 days after getting your desposit

Packaging Details : PP Bag Inside.outer is carton with film wrapped.

OEM NO. : 281-15-12720 2811512720

Model : 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

NAME : Friction Disc

Machine : Komatsu

Size : OEM Standard

Material : HQC,HQP,HQE，HQM

Friction value : D0.12-0.15，S0.12-0.17

Max.surface pressure : According to material properties

Color : Silver black

Package : 1pcs as a seperate

Contact Now


1. Product Details

Part NO. 281-15-12720 2811512720
Machine Komatsu
Model 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785
Size OEM Standard
Material HQC,HQP,HQE,HQM
Color Silver Gray black

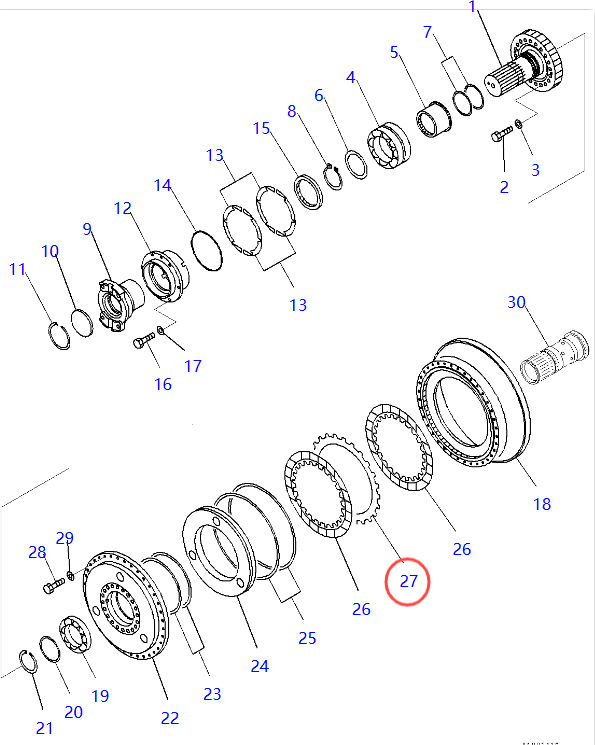

2. 281-15-12720 ON GROUP:
281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

Pos. Part No Qty Parts name
1 195-13-71331 [1] Shaft
2 01010-61475 [20] Bolt
3 01643-31445 [20] Washer, Flat
4 19M-13-23360 [1] Bearing
5 711-66-11343 [1] Race
6 711-66-11771 [1] Plate
7 07018-21155 [2] Seal Ring
8 04064-01030 [1] Ring, Snap, for Shaft Side
9 711-67-11662 [1] Coupling
10 711-60-11392 [1] Cap
11 04071-00120 [1] Ring, Snap, for Hole Side
12 711-67-13370 [1] Retainer
13 711-66-14270 [6] Shim, T=0.15mm
13 711-66-14280 [6] Shim, T=0.2mm
13 711-66-14290 [4] Shim, T=0.5mm
14 07000-75175 [1] O-ring, (Kit : K01)
15 07012-50125 [1] Seal, Oil, (Kit : K01)
16 01010-81035 [6] Bolt
17 01643-31032 [6] Washer
18 711-66-11210 [1] Case
19 711-62-21550 [1] Bearing
20 711-60-11770 [1] Plate
21 04070-00105 [1] Ring, Snap
22 198-13-47111 [1] Housing
23 566-15-49210 [2] Ring, (Kit : K01)
24 195-13-77210 [1] Piston
25 175-15-59250 [2] Seal Ring, (Kit : K01)
26 195-15-32710 [2] Disc
27 281-15-12720 [1] Plate
28 01010-81240 [36] Bolt
29 01643-31232 [36] Washer

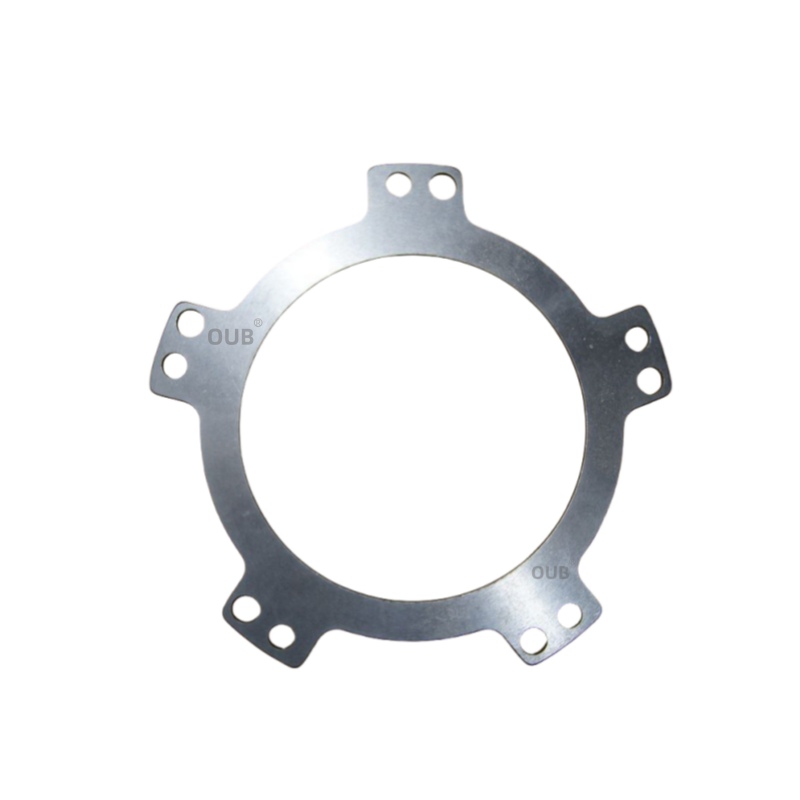

3. Picture details of 281-15-12720:
281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785
4. Part No.on the Group

Part No. Part No.
12F-10-11240 125-15-32750
23S-15-12720 131-10-11110
23S-15-12730 131-10-11120
23S-15-12740 131-10-61140
104-22-33321 131-21-43220
110-22-11332 150-21-23111
111-11-12120 175-22-11140
113-15-22720 232-25-51430

5. Our advantages
281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

  • We are a factory and we also have our own sales team.
  • We have original software system data to support which 100% accurate.
  • We know how to protect your equipment with high-quality products and professional knowledge.


6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.

Q2: What is the price of the Friction Disc?
A2: The price of the Friction Disc is negotiable.


Q3: What is the minimum order quantity for the Friction Disc?
A3: The minimum order quantity for the Friction Disc is 1.


Q4: What are the packaging details for the Friction Disc?
A4: The packaging details for the Friction Disc is PP Bag.


Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit.

7. Exhibition & Warehous

281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785

281-15-12720 Friction Disc Komatsu 2811512720 330M AFP49 D135A D155W D355C D475A D85A HD1500 HD465 HD785


Machine NO. ,Model No. Part No. , And More
