Name: OK seal ring for piston
Uses: Mainly used for heavy hydraulic equipment, especially for double-acting pistons.
The applicable working pressure of this kind of seal is as high as 80Mpa, and in some cases it can be higher. Advantages of OK seal:
1. Small shape;
2. Impact load resistance;
3. Good wear resistance;
4. Even after the pressure is maintained for a long time, the friction between starting and running is very low;
5. Since the sealing ring of the hydraulic cylinder is an open structure, it can be installed on the integral piston without auxiliary tools;
6. Due to the special material properties of the sealing ring, it has strong anti-extrusion ability under high pressure and large gap.
installation: The installation groove is carefully deburred and cleaned. The entrance of the cylinder inner diameter should be chamfered. OK-type seals can be installed in closed grooves.

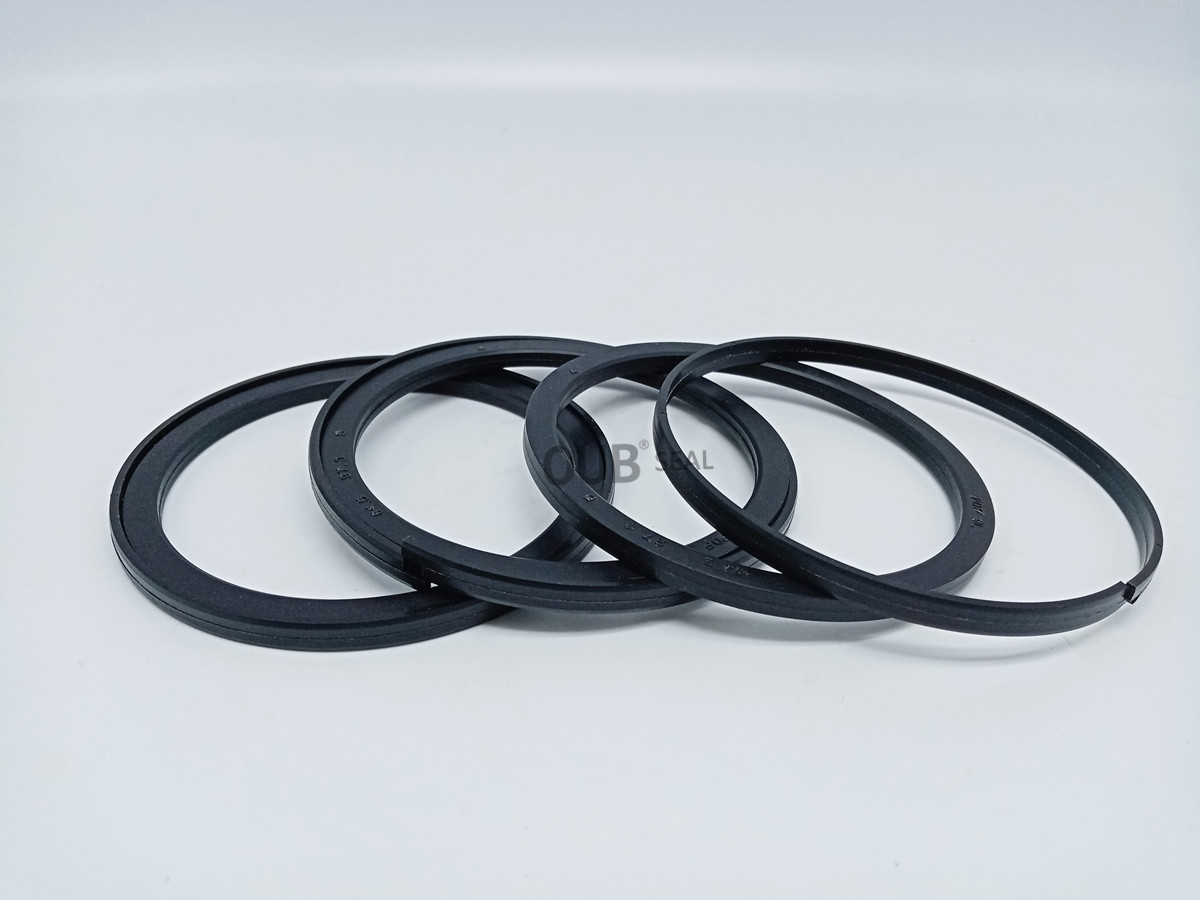

Product shots:
Part No.
| 02896-11008 | TZJW1516-G35-7 | 6V-8400 |
| 722-12-18240 | TZJW1516-G35-9 | 7V5219 |
| 02896-11018 | TZJW1516-G37-7 | 7Y512 |
| 708-17-51210 | TZJW1516-G41-9 | 033-6027 |
| 708-25-12340 | TZJW1516-P74-9 | 4F9653 |
The outer sealing ring is made of modified thermoplastic material, with low friction between starting and running. It has a Z-shaped opening structure and is easy to install on the integral piston. The inner ring is made of NBR rubber to provide pre-tightening pressure.
Size:
| 75*54*8 | 90*69*8 | 105*84*8 |
| 80*59*8 | 90*74.5*6.3 | 110*89*8 |
| 80*64.5*6.3 | 95*74*8 | 110*94.5*6.3 |
| 85*64*8 | 100*79*8 | 115*94*8 |
| 90*69*8 | 100*84.5*6.3 | |
If you want to know more about our other products, you can contact us at any time.
FAQ
Q1: Can I get some samples?
A: Yes, Sample order is available for quality check and market test .But you have to pay the express cost.
Q2: What’s delivery time?
A: Within 5-15 days after getting your desposit.
Q3: What’s your payment terms?
A: We usually accept all kinds of payment terms .Such as T/T,L/C, etc.
Q4: Are you trading company or manufacturer?
A:We are trading company and we also have our own factory to produce seals.With more than 20 years of PU manufacturing experience.
Q5: How to guarantee your after sales service?
A: 1.Strict inspection during production
A: 2.Recheck the products before shipment to ensure our packaging in good condition
A: 3.Track and receive feedback from our customer
|
|
